APLINK HRX

Direct printing

High-Resolution Grayscale Inkjet Printers, designed to improve coding performance on porous and non-porous surfaces.

  • SHARE ON:

TAKE CODING TO THE NEXT LEVEL

  • Resolution: Multichannel vertical resolution management and up to 1440dpi of horizontal resolution for a higher contrast.
  • Peripheral connections: Connect encoders, beacons or UVLED curing lamps; link printers or communicate APLINK HRX Series with any item in the line.
  • Bottle autodetection: APLINK HRX Series detects the ink inserted preventing errors and ensuring the best possible print quality.
  • Speed: Up to 250m/min and cadence of up to 30 prints/second.*

    * Depending on print resolution, message length, gap between prints and other printer or installation parameters.

  • Maximum message length: 8 meters.
variable head marking equipment

FIX: Flex Integration System.

Innovative design that allows the print-head to rotate on its 3 axes to print in SIDE, TOP or TILT position (from 0º to 90º) fast and easy.

high contrast industrial marking system

CPE: Contrast Per Element.

Regulates the contrast applied to each element, making it possible to highlight some areas of the message more than others.

hrx dentifying equipment controller

Display HMI 7” or 10”.

For a greater comfort, it is possible to remove the controller from the printer’s body and place it anywhere on the production line.





PRINTING ON ANY SURFACE: UVLED CURING



At United Barcode Systems we manufacture the only complete UVLED curing solution: Lamp + Printer + Ink.

  • "Curing is our territory". We are pioneers in the development and manufacture of UVLED technology for coding and marking on any surface.
  • Printer and LED as one.
    The UVLED Curing System is fully manageable through the display of our printers, being able to configure any of its parameters in a visual and intuitive way.
    It also has a Stand Alone mode, which allows the UVLED to be operated mechanically as a separate system.
  • Two working modes:

    · HMI Driven Mode (Synchronized with the parameters set from the printer's HMI).

    · Autonomous (Mechanically configurable activation time).

  • Smart Lamp, maximum security.
  • Variable curing height.

UVLED TECHNOLOGY



Technology-curing-system-UVLED-UBS
Curing-System-UVLED-Ubscode

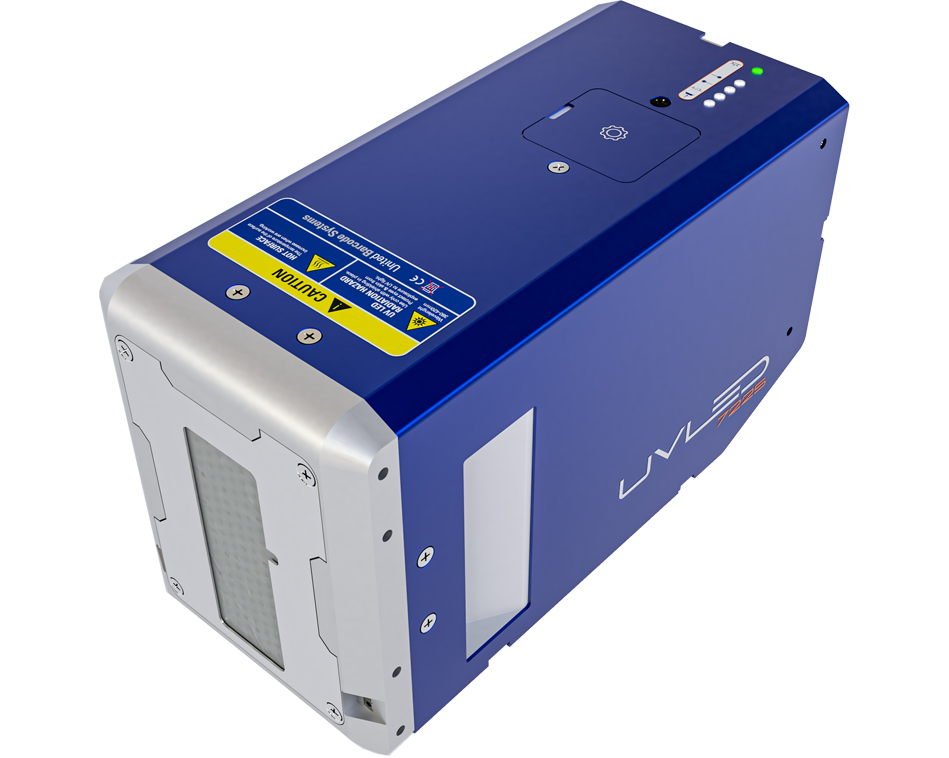

uv led curing system lamp
aplink hrx series direct marking
aplink hrx gs05 date printing text box
APLINK HRX GS05
  • Oil-based ink and UVLED
  • Up to 3 levels
  • Vertical resolution up to 180 dpi
  • Horizontal resolution up to 1440dpi
aplink hrx gs10 print logo barcode
APLINK HRX GS10
  • Oil-based ink and UVLED
  • Up to 7 levels
  • Vertical resolution up to 360 dpi
  • Horizontal resolution up to 1440dpi

EQUIPMENT CERTIFICATES



aplink hrx equipment certificates
